hope mono mini

[ba57ards]

couple of questions

wheres the caliper numbers ?

and what caliper number do i need to run 180mm at the rear ?



[WD Pro]

A) Stamped on one of the legs.

B) I can't remember but every time I have needed to know, a google search brings back a list (I think it's on MTBR)

If you have the type with the gold bore cap, I might be interested in swaps / trades

WD



[ba57ards]

Thanks for that now need to get on with finishing the bike

Won't be swapping them though as I need them for my zaskar



[WD Pro]

Hi,

I didn't mean swap them for other goods, I meant swapping for other numbers ;-)

I have two 3's and a 5, I would swap one of my 3's

The list (not mine, I copied and pasted it) :

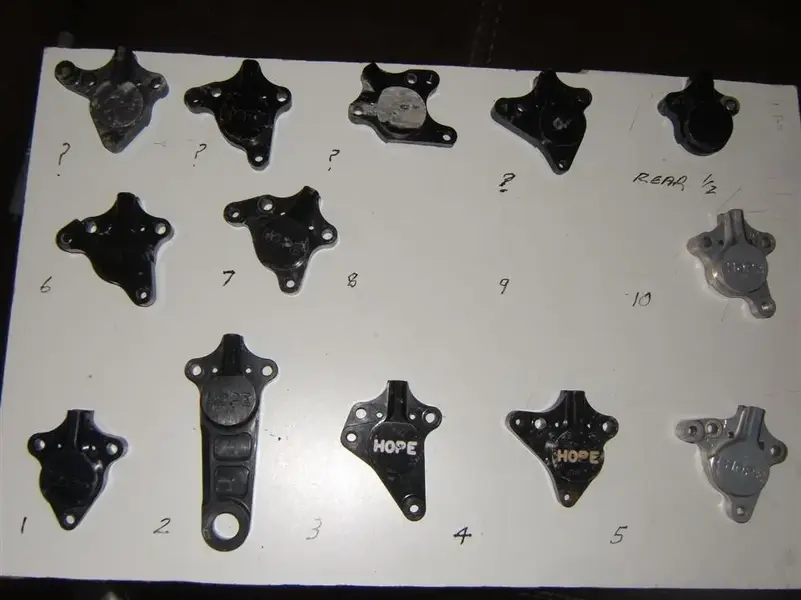

The numbers are for various different mounts and rotor sizes. If my memory serves me correctly they are the following:

1 - Hopes own standard, designed for the original line of Hope brake adaptors
2 - Rear calliper for frames without disc mounts. Used to use a shortened axle
3 - International Standard, 51mm spacing. Front 185mm rotor, rear 165mm
4 - Might of been 48mm Marzocchi Standard
5 - International Standard, 51mm spacing. Front 165mm rotor, rear 145mm
6 - Boxxer Mount 205mm Rotor
8 - International Standard, 51mm spacing. 205mm rotor front
9 - Manitou/Post Mount. Early models were 71mm I think, then Manitou changed it around 2000 to the current 74mm standard.

WD



[ba57ards]

That's the list for the hope c2 calipers as the mono minis run 140/160/180 mm discs

Will speak to hope sometime this week and see what caliper I need



[Mindmap3]

The numbers for the mono's are the same, just 5mm smaller.

A number 3 mono calliper runs a 180mm rotor on front, 160mm on rear.

To run a rear 180 you either need a number 3 calliper with a plus 20 adapter or a number 8 (assuming you are talking IS mounts).



[Barneyballbags]

The numbers for the mono's are the same, just 5mm smaller.

A number 3 mono calliper runs a 180mm rotor on front, 160mm on rear.

To run a rear 180 you either need a number 3 calliper with a plus 20 adapter or a number 8 (assuming you are talking IS mounts).

What he said



[dyna-ti]

Hi,

I didn't mean swap them for other goods, I meant swapping for other numbers ;-)

I have two 3's and a 5, I would swap one of my 3's

The list (not mine, I copied and pasted it) :

The numbers are for various different mounts and rotor sizes. If my memory serves me correctly they are the following:

1 - Hopes own standard, designed for the original line of Hope brake adaptors
2 - Rear calliper for frames without disc mounts. Used to use a shortened axle
3 - International Standard, 51mm spacing. Front 185mm rotor, rear 165mm
4 - Might of been 48mm Marzocchi Standard
5 - International Standard, 51mm spacing. Front 165mm rotor, rear 145mm
6 - Boxxer Mount 205mm Rotor
8 - International Standard, 51mm spacing. 205mm rotor front
9 - Manitou/Post Mount. Early models were 71mm I think, then Manitou changed it around 2000 to the current 74mm standard.

WD

Missed out No7 and No10



[ba57ards]

Can I donate u a no 9 for that board pls dyna ti



[boxxer]

#8 was also a 185 rear... I had one on a C2 then went 3+20mm mount for 185 on my E4's (hope also did a #8 rear later in the E4 caliper..)
