Tange fork rebuild help please

bjellys

Retro Guru

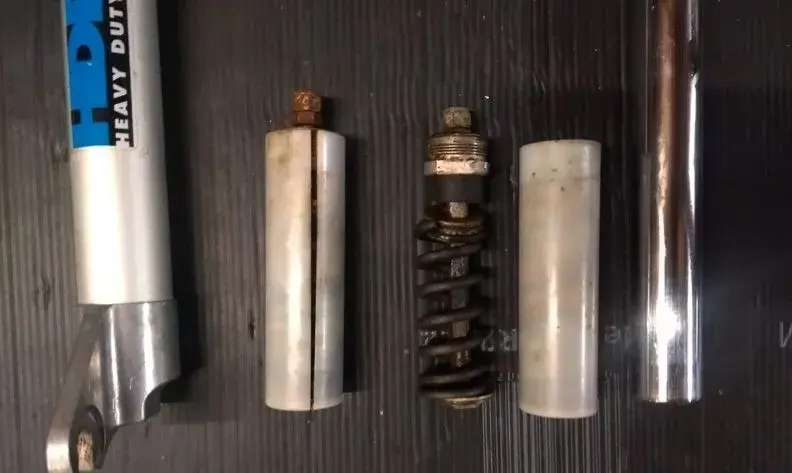

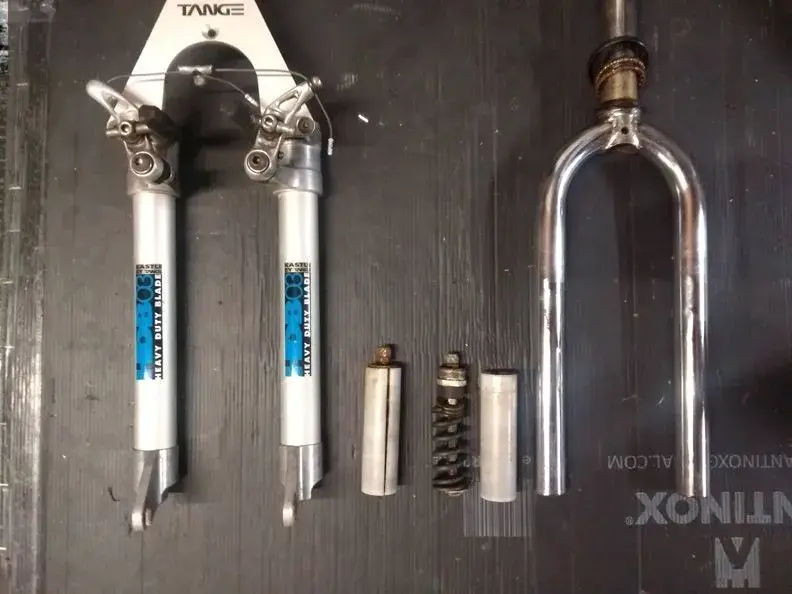

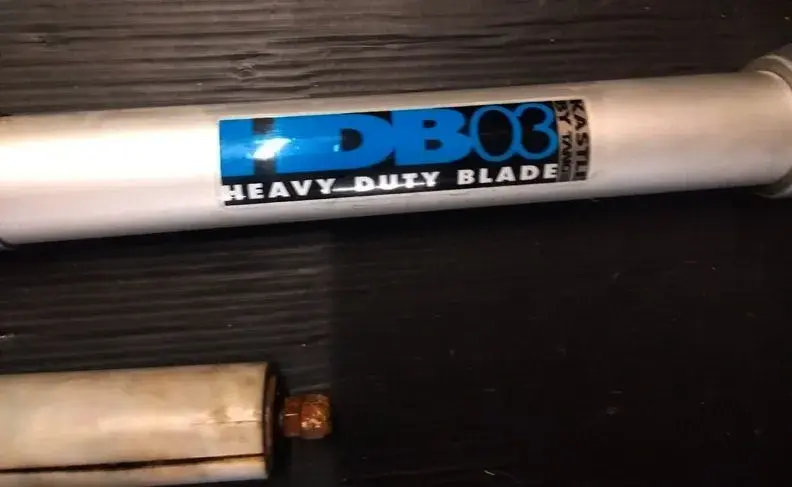

just bought a bike with these on and need to rebuild them I guess they have been bodged up as they have springs that don't seem right to me ,I think they should have elastombers.
Perhaps some kind folk can tell me or even better point me to an exploded view.


Attachments

  • tange3.webp
    18.4 KB · Views: 252
  • Tange2.webp
    23 KB · Views: 252
  • Tange1.webp
    36.4 KB · Views: 252
