Tioga T-Bone BAr Stem - Internal cable routing issue.

[Trebz]

All

I have a problem, although I'm convinced that it's more a problem with the human, not the steel mountain bike component

I bought one of these: http://www.ebay.co.uk/itm/380433062...NX:IT&_trksid=p3984.m1497.l2649#ht_2133wt_845

Am I right in thinking that these should be installed using a fork or headset mounted cable hangar?

I have fitted it already and inserted the brake cable outer into the internal bar stem hole, whenever i pull the brake lever after installation the brake cable outer is pulled through the bar stem and pops out the underside. Should i push the brake cable outer all the way through the bar stem then run it through a cable hangar?

Never used this type of bar stem before, have had T-Bone's in the past but not this internal cable type.

Thanks in advance.

Trebz



[Grannygrinder]

.

Are you installing the outer cable with a steel ferrule fitted?
I've not had any problems with the 2 i've used.



[Trebz]

Re: .

Are you installing the outer cable with a steel ferrule fitted?
I've not had any problems with the 2 i've used.

Hhmm... no steel ferrule fitted by me, will try that and report back....

That's probably where I'm going wrong hehe



[Trebz]

Re: .

Are you installing the outer cable with a steel ferrule fitted?
I've not had any problems with the 2 i've used.

Steel ferrule installed. Problem solved. Human now understands.

Thanks GG.

Regards

Trebz



[Elev12k]

Alternatively use the old diameter outers. I remember that when I used a ferrule icw normal diameter outers the cable was pulled through the ferrule too under extreme force. They weren't the best ferrules, but with the old diameter cable (without ferrule) I had what I wanted.

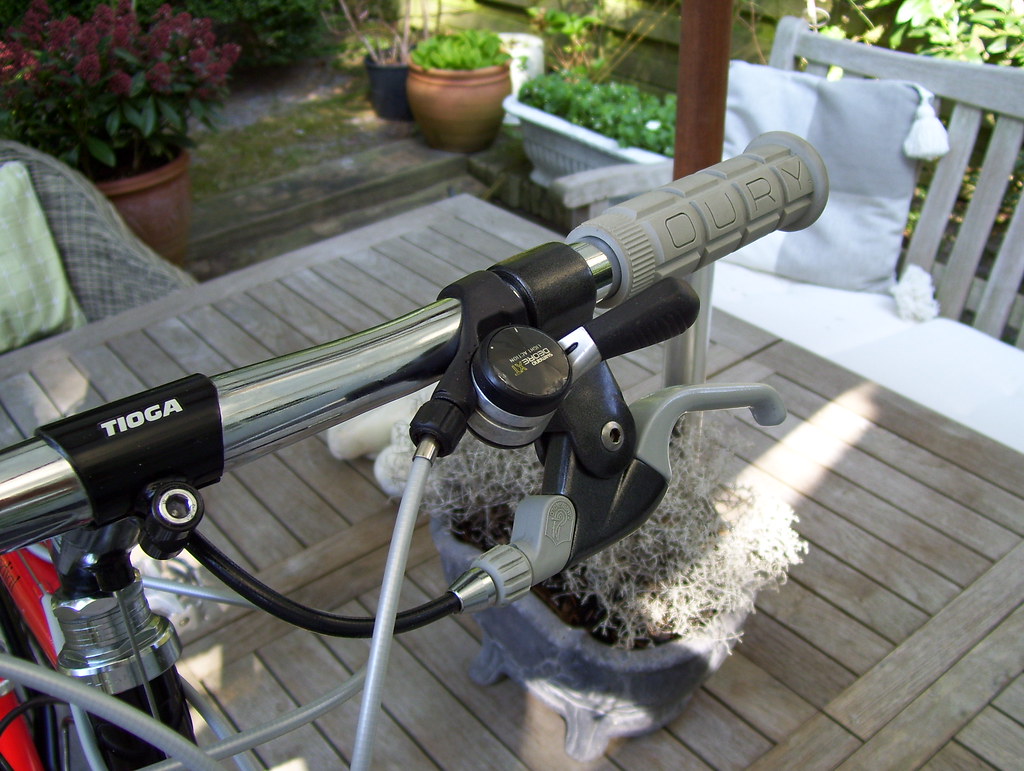

Slightly larger diameter old outer >>>
