Hope hub identification & width problem

[rwm1962]

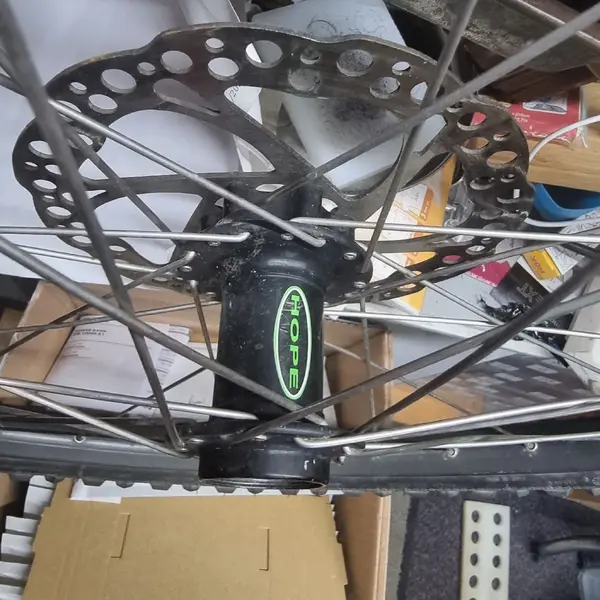

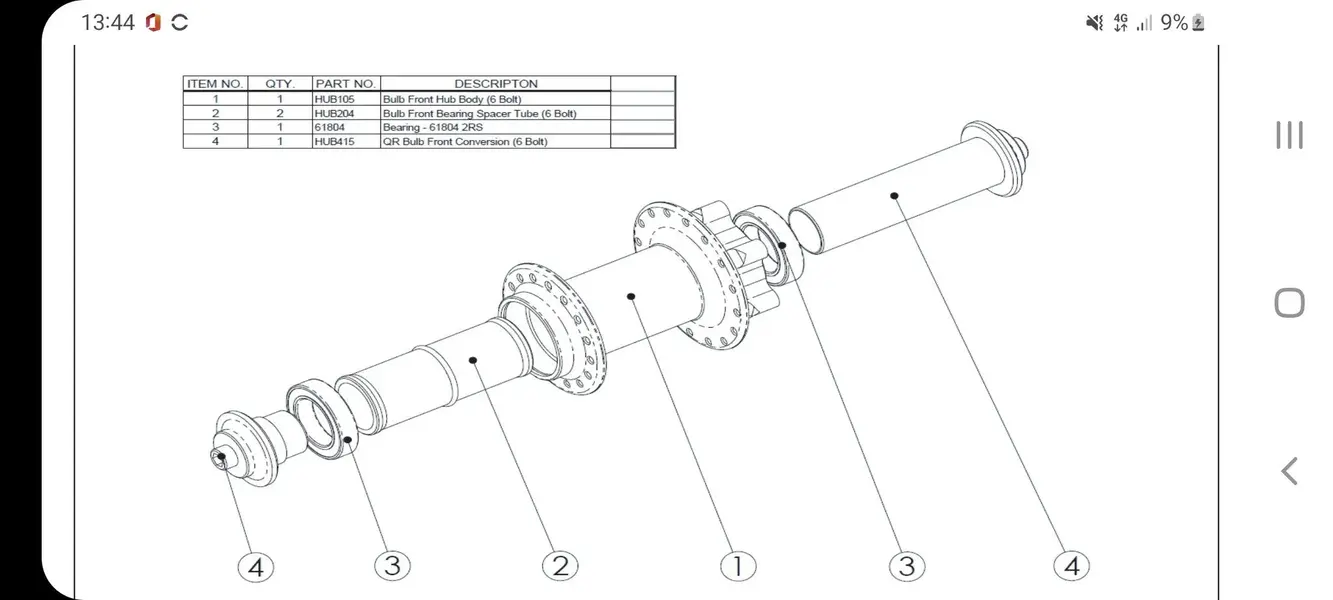

Can anyone ID this front hub please? Bulb is nearest I can find but exploded view doesn't match. Internals are more like a Fatsno. Same bearing & QR spacer each side. It's about 5mm too wide & I'd like to ID it check it's got the right internals. Think I bought it as part of a wheelset a few years ago (rather than coming off another bike).



[mdvineng]

Bulb qr hub



[rwm1962]

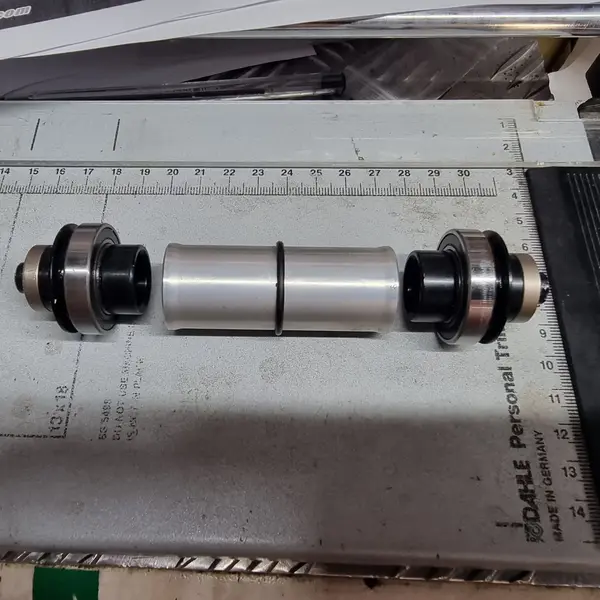

Thanks. I've checked the bearings & they are correct. My disk side end cap differs completely & the other side too possibly on the outer side between the flange & metal collar. Is this the issue or just a different configuration?

Its actually 10mm too wide at 110mm.



[mdvineng]

You have the wrong centre tube for QR ends. You need item 4.



[rwm1962]

Damn. Thanks for the quick reply. Maybe a cheap wheel will be sourced while I search.



[rwm1962]

Gone for a replacement Bulb hub as the internals outside of bearings look to be unobtainable so will keep this one for spares.

Been sold a right POS, Just gone to fit the rear & the rotor is about 5mm too far in-board! Investigation pending.



[mdvineng]

Post up pics. I have some Hope disc spacers in stock but 5mm is excessive. Look for an incorrect spindle adapter fitted.



[rwm1962]

Cheers - Hopefully I'll get it stripped down on Sunday.
